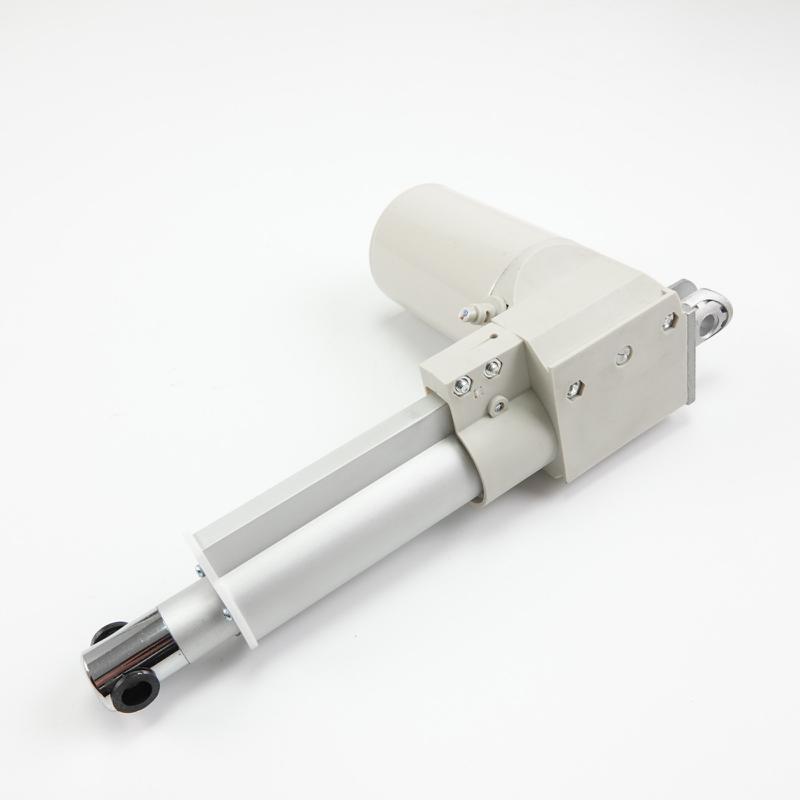

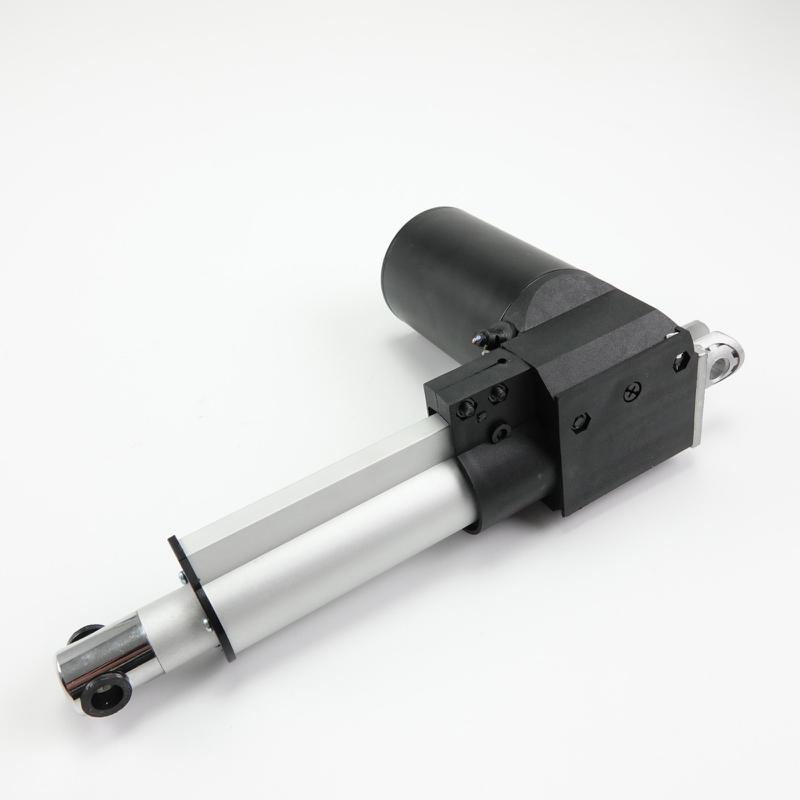

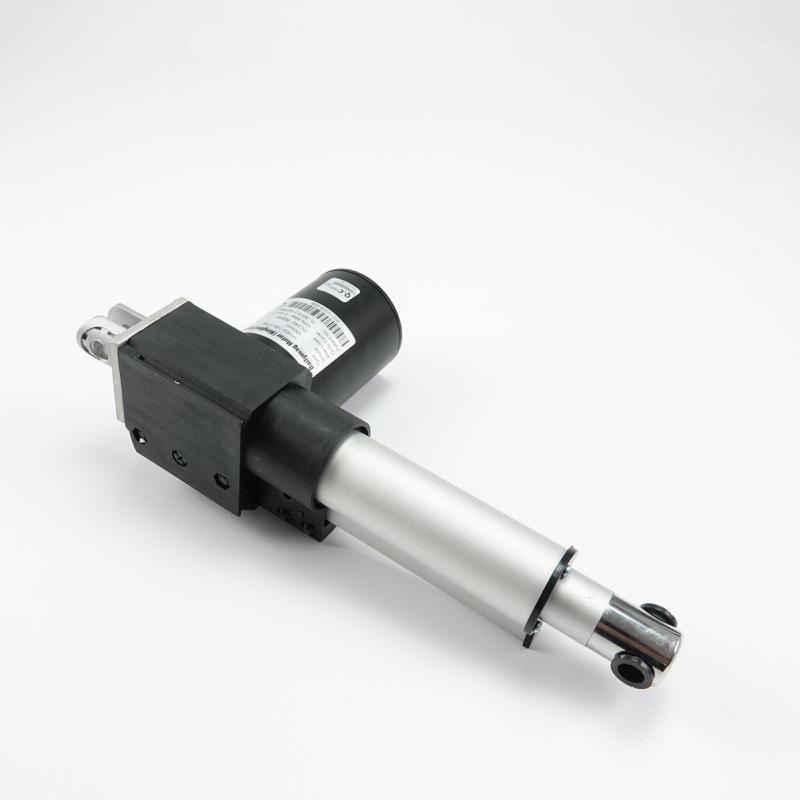

HT SERIES LINEAR ACTUATOR
HT Series Electric Linear Actuators (Electric Linear Actuator) are all-purpose products. They have smart design and excellent performance. They are widely used in furniture, home beds, office tables, massage equipment, sporting equipments and so on.
Specification of HT Series Electric Linear Actuator:
◇ Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive
◇ Standard Stroke of Electric Linear Actuator: 100/150/200/250/300/350/400 mm, special stroke are available according to customer' requirement.
◇ Max. Thrust of HT Electric Linear Actuator: 1000N, 3000N, 6000N
◇ Free Load Speed of Electric Linear Actuator: 5mm/s～18mm/s
◇ Rated Load Speed of Electric Linear Actuator: 5mm/s
◇ Duty cycle of Electric Linear Actuator: 10%
◇ Ambient temperature -25°C (-13F) to +65°C (149F)
◇ Standard protection class of Electric Linear Actuator: IP 44
◇ Built-in integral limit switch, not adjustable after leaving factory
◇ Low noise design, dB<53(A); The inspection method is in accordance with DS/EN ISO3746 while Electric Linear Actuator is unloaded.
◇ CE Certificated Electric Linear Actuator
Standard Stroke of HT Electric Linear Actuator and Min. Install Dimension
| Standard Stroke (mm) | 50 | 100 | 150 | 200 | 300 | 350 | 400 | |
| Min. Install Dimension (mm) | HT-1000N | 225 | 275 | 325 | 375 | 475 | 525 | 575 |
| HT-3000N | 225 | 275 | 325 | 375 | 475 | 525 | 575 | |
| HT-6000N | 225 | 275 | 325 | 375 | 475 | 525 | 575 | |
Technical Specification of HT Electric Linear Actuator
| Item No. | Max. Thrust (N) | Max. Pull (N) | Self-Lock (N) | Speed (mm/s) | Duty Cycle (min/h) | Current at full load(A) | |
| Full load | No load | ||||||
| HT-1000N | 1000 | 750 | 750 | 12 | 18 | 6 | 4.5 |
| HT-3000N | 3000 | 2500 | 2000 | 8 | 12 | 6 | 4.5 |
| HT-6000N | 6000 | 4500 | 4000 | 5 | 6.5 | 6 | 4.5 |
