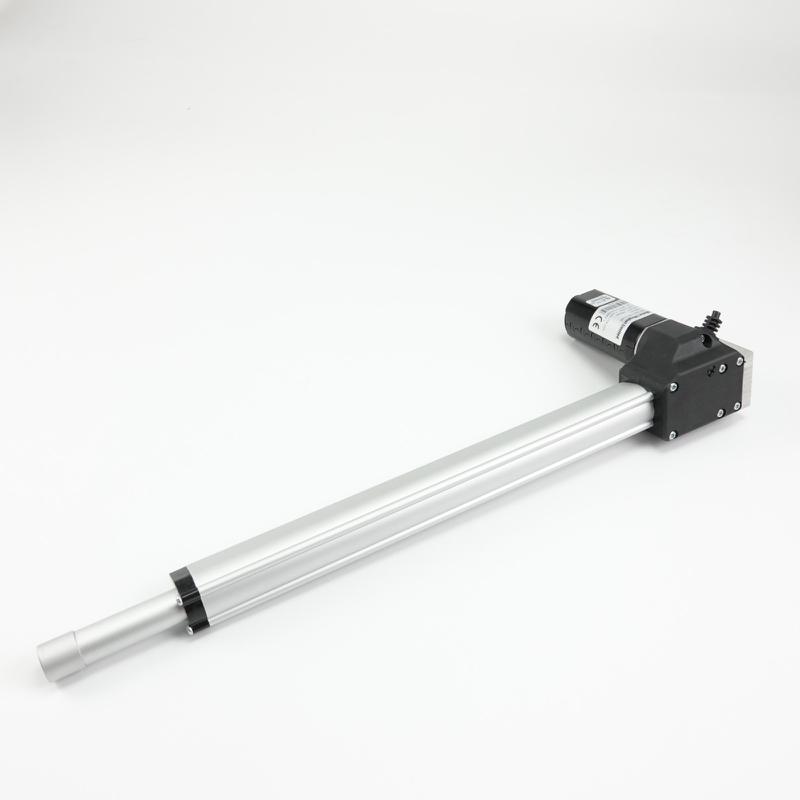

MT Series Linear Actuator
DT Series Linear Actuators (Electric Linear Actuator) with dual drivers, these linear actuators are easily installed, free operation and customers can adjust the back or foot individually or jointly. They are widely used for adjustment of slatted bed, medical bed, home bed etc.DT Series Linear Actuators must only been used for bed frame, do not overload.
Specification of DT Series Linear actuators (Electric Linear Actuator):
◇Voltage: 24VDC Double Permanent Magnet Motor Drive
◇ Max Thrust of Linear Actuator: 2x4500N
◇ Duty cycle: 10%, comment: 2 minutes continuous work followed by 18 minutes rest
◇ Inner limited adjustable micro switch, not adjustable after leaving factory
◇ Optional Stroke: 69/87mm
◇ Max Speed of Linear Actuator: 5.6mm/s
◇ Inner Overload Protection
◇ Power Supply: 100-110v/220-240v 50-60Hz
◇ Output Power: 100w
◇ Size of of Linear Actuator: 767x121x169mm
◇ Important Installation Dimension: 581±1mm
◇Standard Protection Class: IP22
◇ Operation Temperature: 10°C (50F) -40°C (104F)
◇ Availability in Black and White housing
◇ Can connect 1-2 Linear Actuator and 1 handset or massage motor
◇ Power Cable Standard
Power Cable: 300/300V 2x0.75mm2, Standard Length 4m, customize length is available
Plug: European Standard, US Standard etc.
