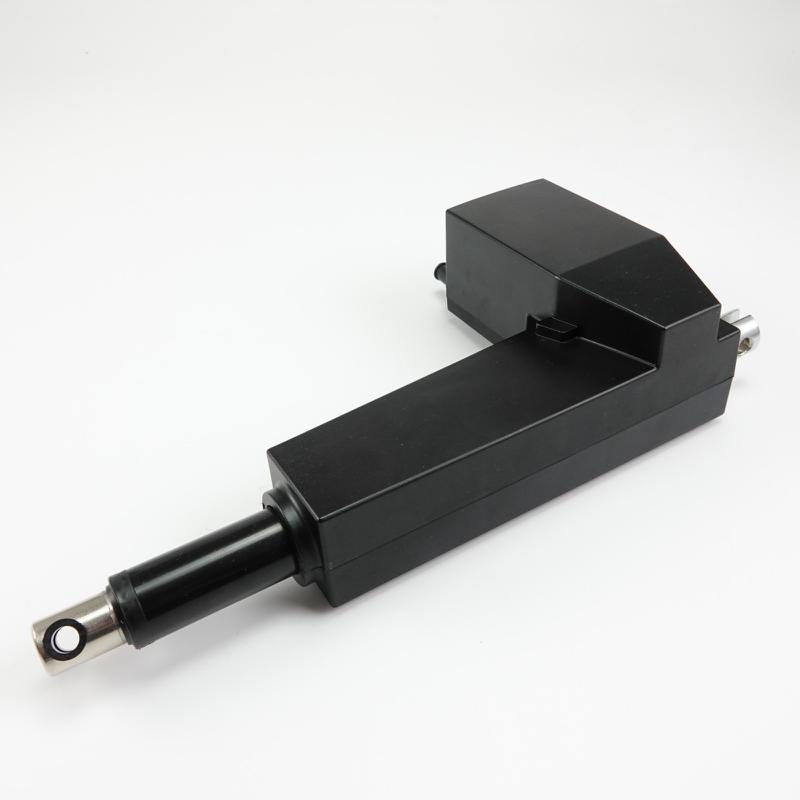

AT SERIES LINEAR ACTUATOR
AT Series Linear Actuators (Linear Actuator) are widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments and so on.
Specification of AT Series Linear actuators:
◇ Max. Thrust 8000N, Max. Pull 5000N
◇ Voltage of AT Linear Actuator: 24VDC or 12VDC, Permanent Magnet Motor Drive
◇ Chrome Plated Piston Rod eye with slot
◇ High Strength Plastic Housing and Gears
◇ Elegant and compact design with small installation size
◇ Standard protection class: IP 54
◇ Built-in integral limit switch, not adjustable after leaving factory
◇ Scratch and wear-resistant powder
◇ Painting on outer tube Φ30mm
◇ Stainless Steel Back Fixture
◇ Strong wear and corrosion resistant stainless steel inner rod
◇ Standard Stroke of linear actuator: 100/150/200/250/300/350/400 mm, special stroke are available according to customer' requirement.
◇ Duty cycle: 10%, comment: 2 minutes continuous work followed by 18 minutes rest
◇ Ambient temperature -5°C (23F) to +40°C (104F)
◇ Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
◇ Overload protection
◇ CE Certificated Linear Actuator
◇ Availability in Black, White and Blue housing.
Standard Stroke of AT Series Linear Actuator and Min. Install Dimension
| Standard Stroke (mm) | <110 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Min. Install Dimension (mm) | AT-4000N AT-6000N | >285 | 325 | 375 | 425 | 475 | 525 | 575 |
| AT-8000N | >325 | 325 | 375 | 425 | 475 | 525 | 575 | |
Technical Specification of AT Series Linear Actuator
| Item No. | Max. Thrust (N) | Max. Pull (N) | Self-Lock (N) | Speed (mm/s) | Duty Cycle (min/h) | Current at full load(A) | |
| Full load | No load | ||||||
| AT-4000N | 4000 | 3000 | 4000 | 5 | 6.5 | 6 | 3.3 |
| AT-6000N | 6000 | 3000 | 6000 | 4.2 | 6.2 | 6 | 3.8 |
| AT-8000N | 8000 | 5000 | 6000 | 5 | 6.5 | 6 | 6 |
